Brand Name : HILINK
Model Number : HL-XENPAK-10G85-SR
Certification : CE FCC Rohs
Place of Origin : Guangdong, China
MOQ : 1pcs
Price : Negotiable
Payment Terms : L/C, T/T, Western Union, Paypal
Supply Ability : 3000 pairs per Week
Delivery Time : 1-4 days
Packaging Details : Carton box, Retail box, Or by required
Data transfer rate : 10Gbps
Max Distance : 300M
Wavelength 1 : 850nm
Interface : Dual SC Connector
Type : SMF
Temperature : 0 to 70℃
XENPAK-10G85-SR 10Gbps XENPAK SR SC Transceiver Multi Mode 300m
General
The XENPAK Module is a highly integrated, Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 10GBASE-LR Transmission with a Vertical Cavity Surface Emitting Laser at 850nm. The transponder operates within a wide case temperature range of 0°C to +70°C and offers optimum heat dissipation and excellent electromagnetic shielding which enables high port densities for 10 GbE systems. A 70 pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK MSA Rev.3.0.
Features
Application
10GBASE SR 10G Ethernet
Order information:
| Part Number | Product Description |
| XENPAK-10G85-SR | 10.3125Gbps Xennpak SR, 850nm, 300m (OM3 MMF), SC, 0ºC ~ +70ºC |

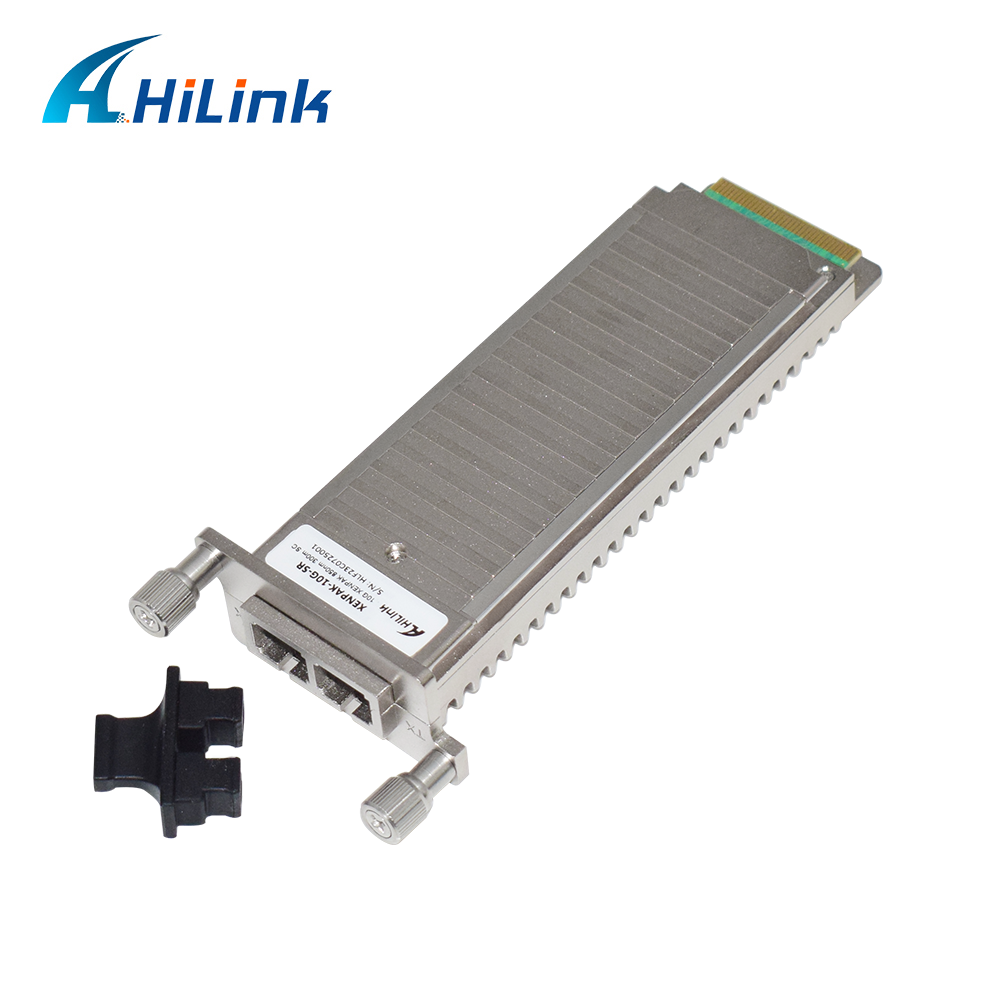

Product Picture




Package Dimensions
.
Company information
Shenzhen Hilink Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.
RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.
Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.
We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as switch and routers, for further detailed test and procedure.
We also have related optical products and good solutions to satisfy customers' requirements.
